Impact Mill 11″



11” Impact Mill, bench model 1HP, 110 VAC, 60Hz 3450 RPM.  Run wet or dry material!



Impact Mill 11″, bench model 1HP, 110 VAC, 60Hz 3450 RPM (ships UPS Ground only)

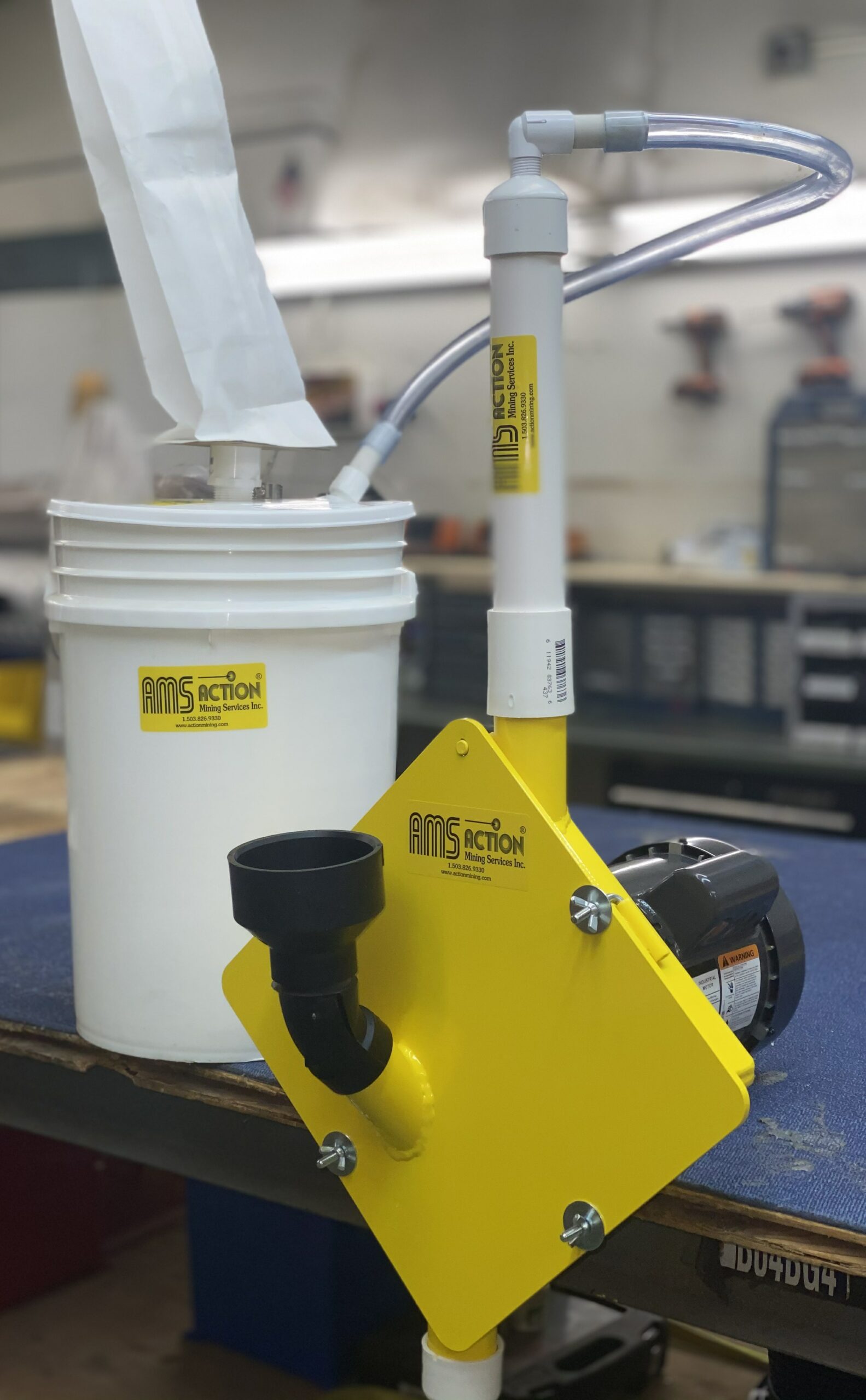

Designed to be fast, efficient, and long lasting with carbide tipped hammers as standard equipment. 2 outlets allowing you to customize running wet or dry material! Pulverize ½” rocks (maximum ¾”) down to 200 mesh material when run dry (with the pulverized material exiting through the top outlet); 100 mesh wet (with the pulverized material exiting from the bottom outlet). Fast and simple to clean out; increasing your production every time you use it! Grind – 80 to 200 mesh Automatic screening to -10 mesh. Volume -10 to 100 pph depending on material. This unit comes complete w/ore bin & hose attachments for discharging the pulverized material into a cyclone ore bin (when running dry material).

Additional information

Weight 80 lbs
Dimensions 19 × 19 × 19 in
